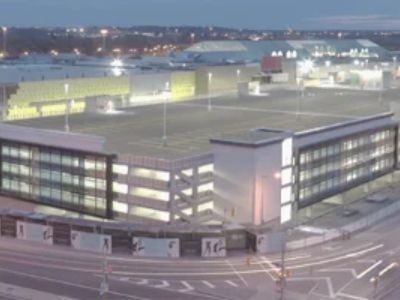

Bayshore Shopping Centre Parking Garage
Project Name: Bayshore Shopping Centre Parking GarageLocation: Ottawa, ONYear: 2016Concrete Supplier: Hanson RMProject Scope: 4 level parkade with 3’ thick raft slabsType of cement used: T-GULSCMs: 40 to 60% slag and 40mm limestoneExposure Class: C1Concrete Design Strength: 35-55 MPaAmount Used: ~64,000 m³ poured by Hanson RMAdditional Details: Low Heat requirement, <0.04% Linear Shrinkage, Salt Scaling […]

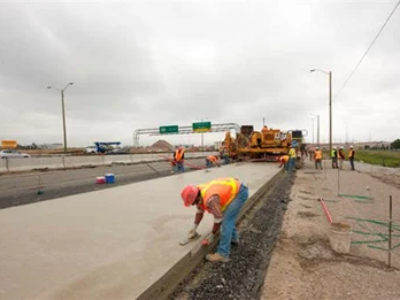

Highway 401 and Hurontario Off-Ramp
Project Name: Highway 401 and Hurontario Off-RampLocation: Mississauga, ONYear: 2010Project Owner: Ministry of Transportation of OntarioConcrete Supplier: Dufferin ConstructionProject Scope: 500 linear metre section, one lane wideType of cement used: 75% Type GULSCMs: 25% slagConcrete Design Strength: 30 MPa w/air concrete, tested for AVS, RCP, Salt Scaling, and Drying ShrinkageAmount Used: 450 m³
Highway 6 and 403 Overpass
Project Name: Highway 6 and 403 OverpassLocation: Hamilton, ONYear: 2017Project Owner: Ministry of Transportation of Ontario (MTO)Concrete Supplier: Dufferin ConcreteProject Scope: Highway OverpassType of cement used: 75% Type GULSCMs: 25% slag cementConcrete Design Strength: 30 MPa w/air concrete patch work mix design, meeting AVS and RCP (<2500C)Additional Details: MTO Night work Project

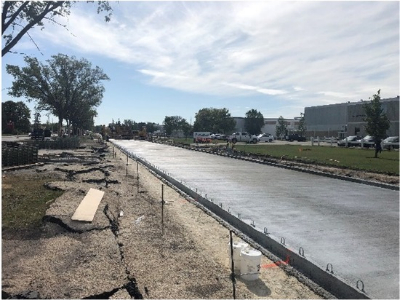

Inkster Boulevard
Project Name: Inkster BoulevardLocation: Winnipeg, MBYear: 2018Project Scope: Concrete road, 230mm thick plain jointed concrete pavementType of cement used: GUL

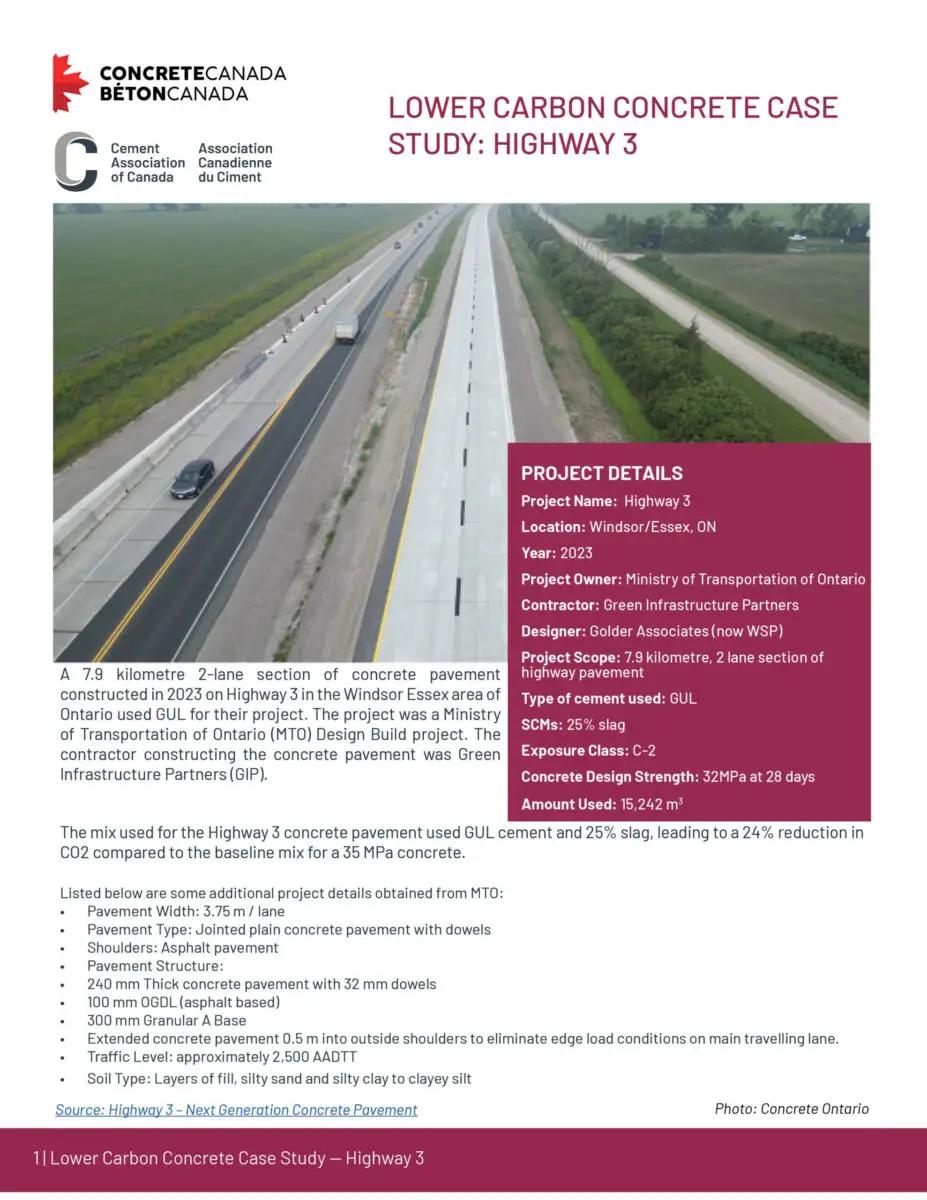

Highway 3 – Concrete Section
Project Name: Highway 3 Location: Windsor/Essex, ON Year: 2023 Project Owner: Ministry of Transportation of Ontario Contractor: Green Infrastructure Partners Designer: Golder Associates (now WSP) Project Scope: 7.9 kilometre, 2-lane section of highway pavement Type of cement used: GUL SCMs: 25% slag Exposure Class: C-2 Concrete Design Strength: 32 MPa at 28 days Amount Used: […]

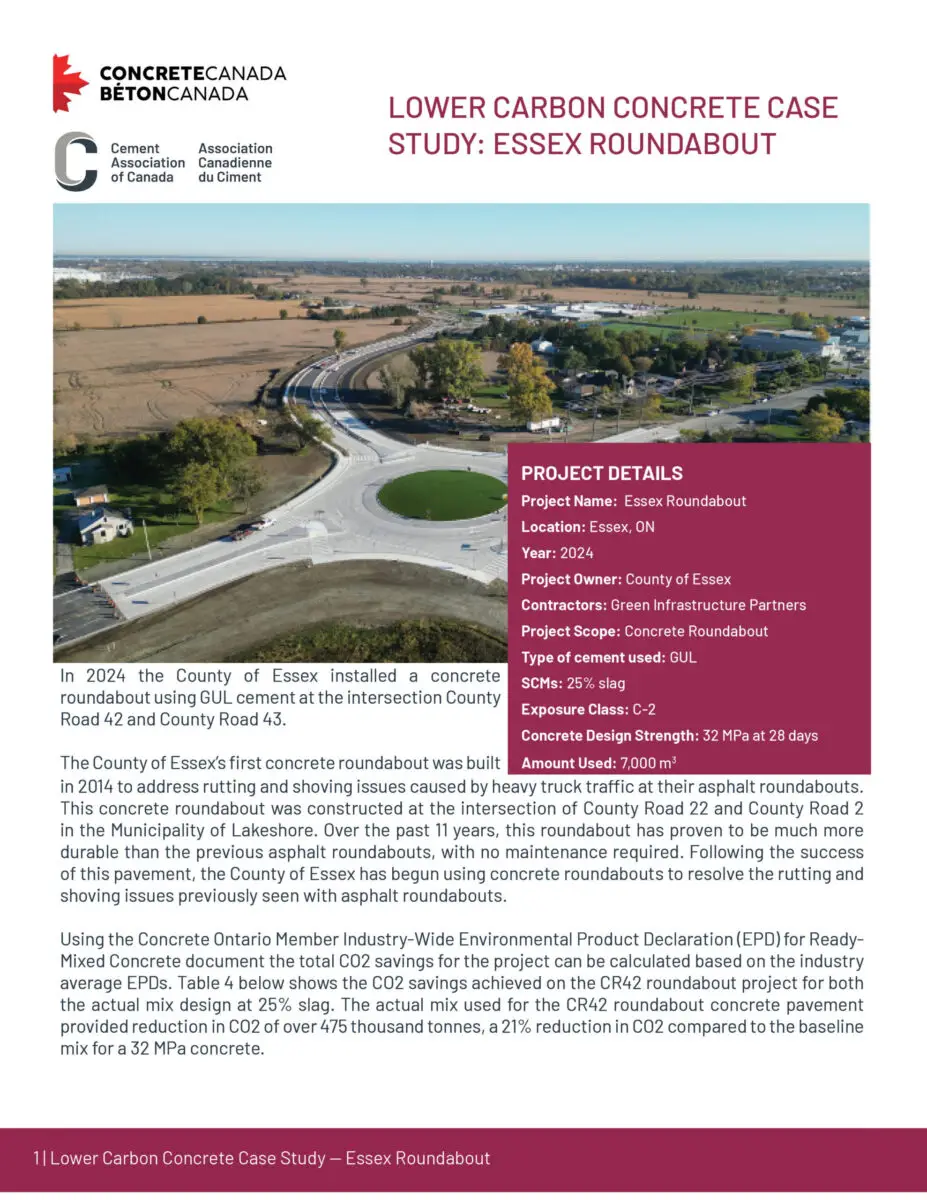

Essex Roundabout
Project Name: Essex Roundabout Location: Essex, ON Year: 2024 Project Owner: County of Essex Contractors: Green Infrastructure Partners Project Scope: Concrete Roundabout Type of cement used: GUL SCMs: 25% slag Exposure Class: C-2 Concrete Design Strength: 32 MPa at 28 days Amount Used: 7,000 m³ Photos courtesy of County of Essex Project Photo Library
